Custom Linear Slides Engineered for Precision & Reliability

When Accuracy Matters, Engineers Call Gilman First

Gilman Precision delivers custom linear slide assemblies that integrate seamlessly, perform reliably, and keep your project on schedule—every time.

ISO9001:2015 Certified | 70+ Years of Motion Expertise | CAD & Engineering Support

Get expert input on you next Slide project

Have a challenging application or tight timeline? Let’s talk it through. Our engineers will review your requirements and provide feedback — fast.

Why engineers contact Gilman:

  • Rapid response — most quote requests answered in 1 business day
  • Direct engineering support, not a sales rep
  • CAD files, integration guidance, and manufacturing timelines included
Slide project

"*" indicates required fields

Full Name*
This field is for validation purposes and should be left unchanged.

Delivering Custom & Stock Slides for Your Mission-Critical Projects

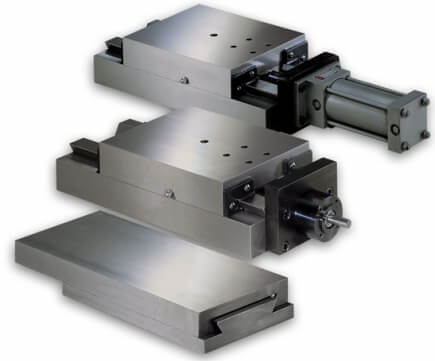

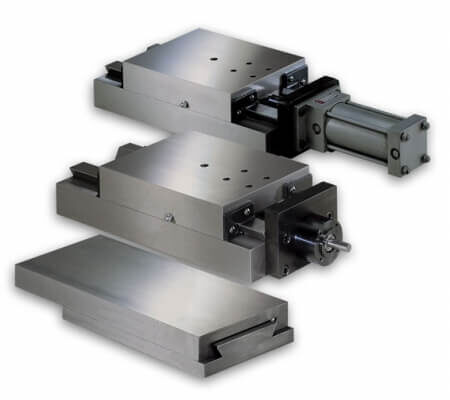

Dovetail & Flat‑Way Slides
  • Load capacity up to 10,000 lbf
  • Travel lengths to 1,000 mm
  • Tolerances to ±0.002" per 12"
  • Hardened‑way construction for wear resistance

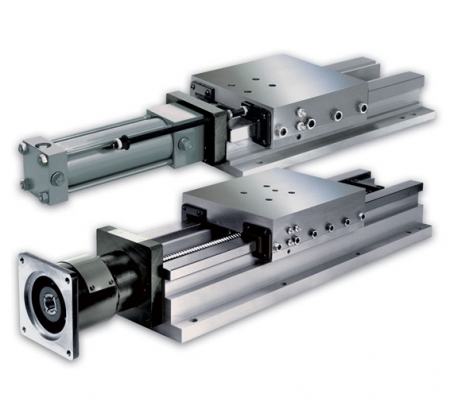

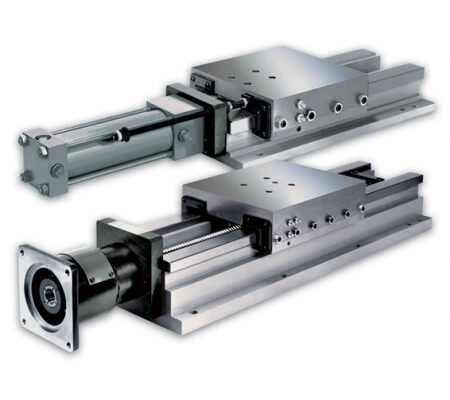

Recirculating‑Ball & Roller Slides
  • Speeds up to 30 m/min
  • Preload options for zero backlash
  • Lifetime lubrication systems
  • High stiffness for dynamic loads

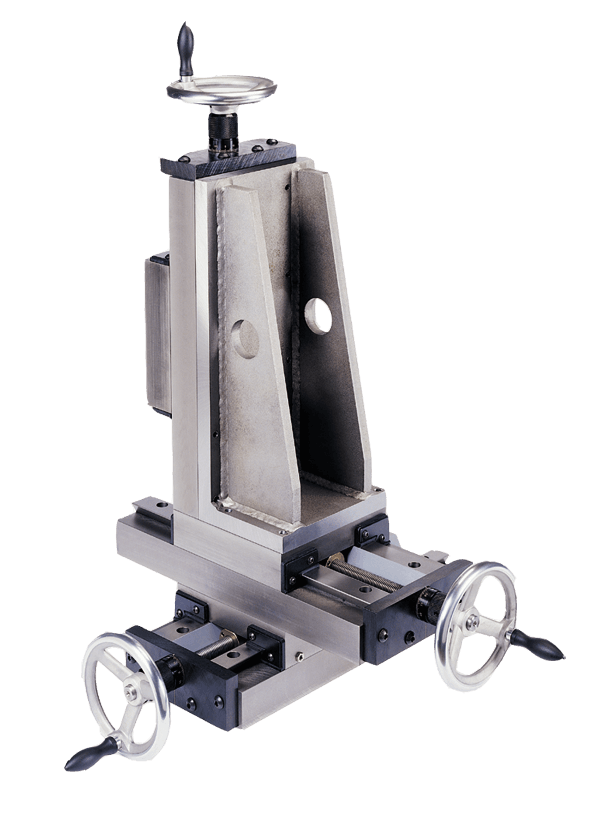

Custom Combinations & Multi‑Axis Modules
  • Integrated spindle + slide assemblies
  • Kinematic couplings and indexing modules
  • Hydraulic, pneumatic, or electric actuation
  • Cluster and multi‑station configurations

CAD models available: STEP, SolidWorks (.sldprt), IGES, Parasolid (.x_t), DXF, PDF

Why Engineers Start With Gilman

First Call for Precision Slides

Rapid response, expert support, and precision you can count on.

Peace of Mind Engineering

ISO9001:2015‑certified quality, U.S.‑based manufacturing, and proven performance.

Tailored to Your Application

Purpose‑built assemblies that work right the first time—no rework.

Machine‑Level Expertise

We solve system‑level challenges, not just component needs.

70+ Years of Proven Performance

Decades of motion‑control experience across medical, aerospace, automation, and more.

Competitive Value & Lead Times

op‑tier specs without premium wait times or hidden costs.

Case Study: High‑Load Dovetail Slide for Aerospace Test Rig

An aerospace OEM needed a custom dovetail slide to handle 8,000 lbf loads over 500 mm of travel. Gilman delivered a hardened‑way assembly with precision‑ground dovetails and integrated position feedback—achieving ±0.001" repeatability and reducing setup time by 30%.

Free Resource: Linear Slide Catalog

Streamline your design with our Linear Slide Catalog—a complete resource to help you:

  • Validate mounting and envelope constraints
  • Select preload, lubrication, and seal options
  • Ensure proper alignment and load distribution
  • Complete drawings, specs & data on our complete line of slides

Explore Our Slide Configurator

Instantly configure slide assemblies, view detailed specs, and download 3D models—no waiting required.

Need help determining the right slide?

Start a conversation with our engineering team or download drawings directly to accelerate your build.

Request A Quote

To request a quote, please contact us using the contact form.

If you have an item that we can repair for you, click the repair request forms below.

Use our product configurator to download a drawing to use in your design.

If you you would like to reach us directly, give us a call at 262-377-2434.
