HWS5-X-9

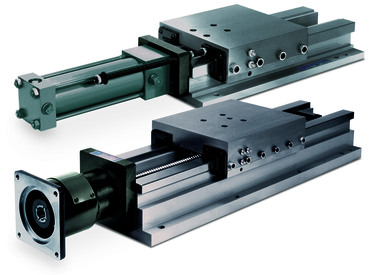

Category: Hardened Steel Way Slides
| Request Quote | Quantity |
Line Drawing - Click to Enlarge
Product Details
| Configurable Attributes | |
| Saddle Length (in) (5 to 6) | |
| Model | HWS5 |
| Base Length (in) | 9 |
| Slide Drive Type | No Drive |
| A (in) | 5 |
| B (in) | 3 1/2 |
| C (in) | 2 1/2 |
| D (in) | 11/16 |
| E (in) | 3 5/8 |
| F (in) | 1/2 |
| G (in) | 7/8 |
| H (in) | 5/8 |
| J (in) | 11/16 |
| K (in) | 1 11/16 |
| L (in) | 1 5/8 |
| M (in) | 15/16 |
| N (in) | 1 7/8 |
| P (in) | 3/8 |
| R (in) | 4 1/4 |
| S (in) | 5/16 |
| U (in) | 4 |
| V (in) | 6 |
| W (in) | 1 1/2 |
| Weight Per Inch - SL (lbs) | 1 5/8 |
| Weight Per Inch - BL (lbs) | 1 3/4 |
| Documentation | |
| Download PDF |
|
